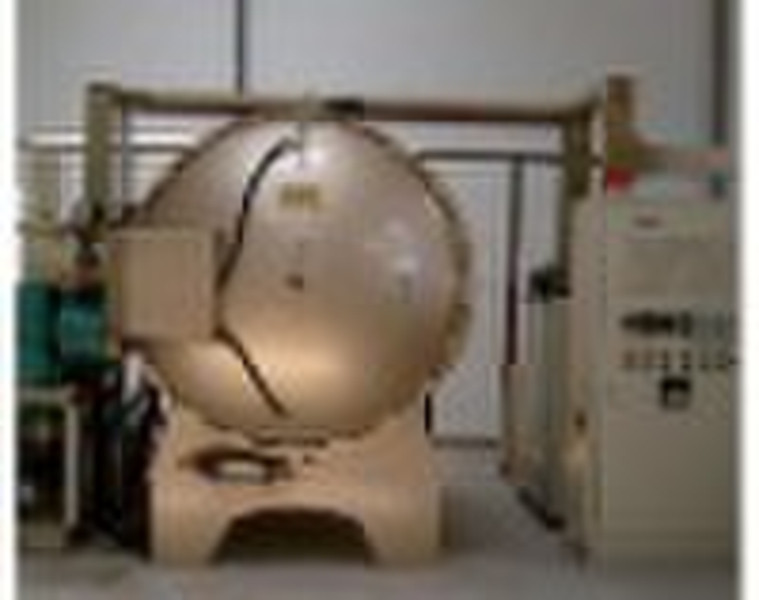

Resistance Heating Vacuum Sintering Furnace

High-Temperature Vacuum Sintering Furnace/Vacuum Sintering Furnace High-temperature vacuum sintering furnace is mainly used in sintering cemented carbides , stainless steel line molding, stainless steel fiber, magnetic materials, and ceramic materials. And it also can be used in powder metallurgy, refractory metals and magnetic materials industry. We can sinter super-hard alloy, tungsten, copper, tantalum, stainless steel and rare-earth permanent magnetic material. Since the heaters symmetrical distribute along the vacuum chamber, and temperature uniformity is high, you can actualize semi-automatic and automatic control according to your demands. Max temperature 1600-2000 degree Volume of high-temperature zone0.01m³; 0.02m³; 0.03m³; 0.05m³; 0.1m³; 0.15m³; 0.2m³; 0.3m³Working environmentVacuum stateUltimate vacuum6.67*10-2 Pa Range of temperature test (Optical measurement with infrared ray)800 2000 degree or 0 1600 degreeMeasurement Accuracyof temperature test0.2 0.75%Temperature control methodmanual/ automatic method with an accuracy of ±1Max heating rate200/min
